3Shape Scanner Connection

Protocol

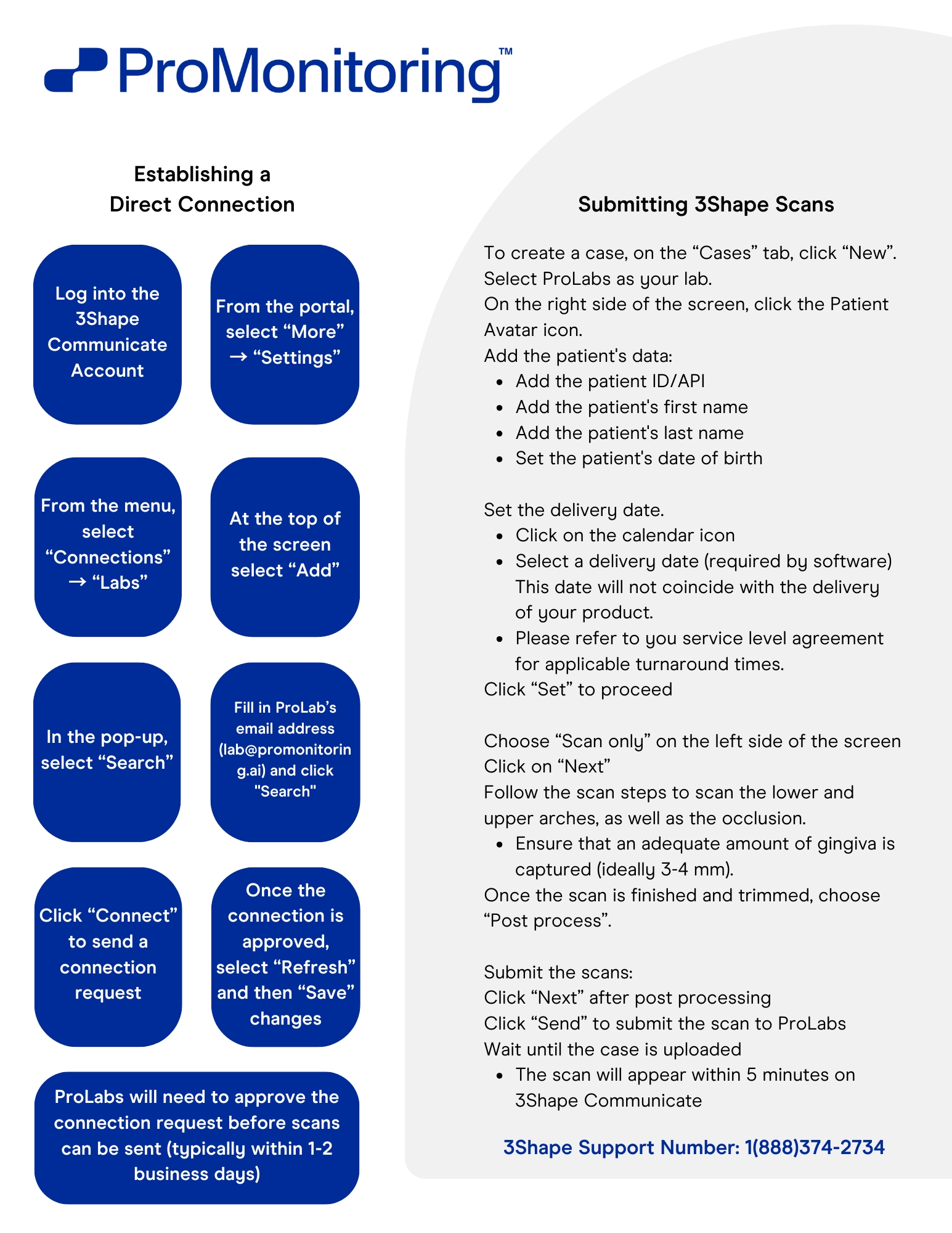

Connections

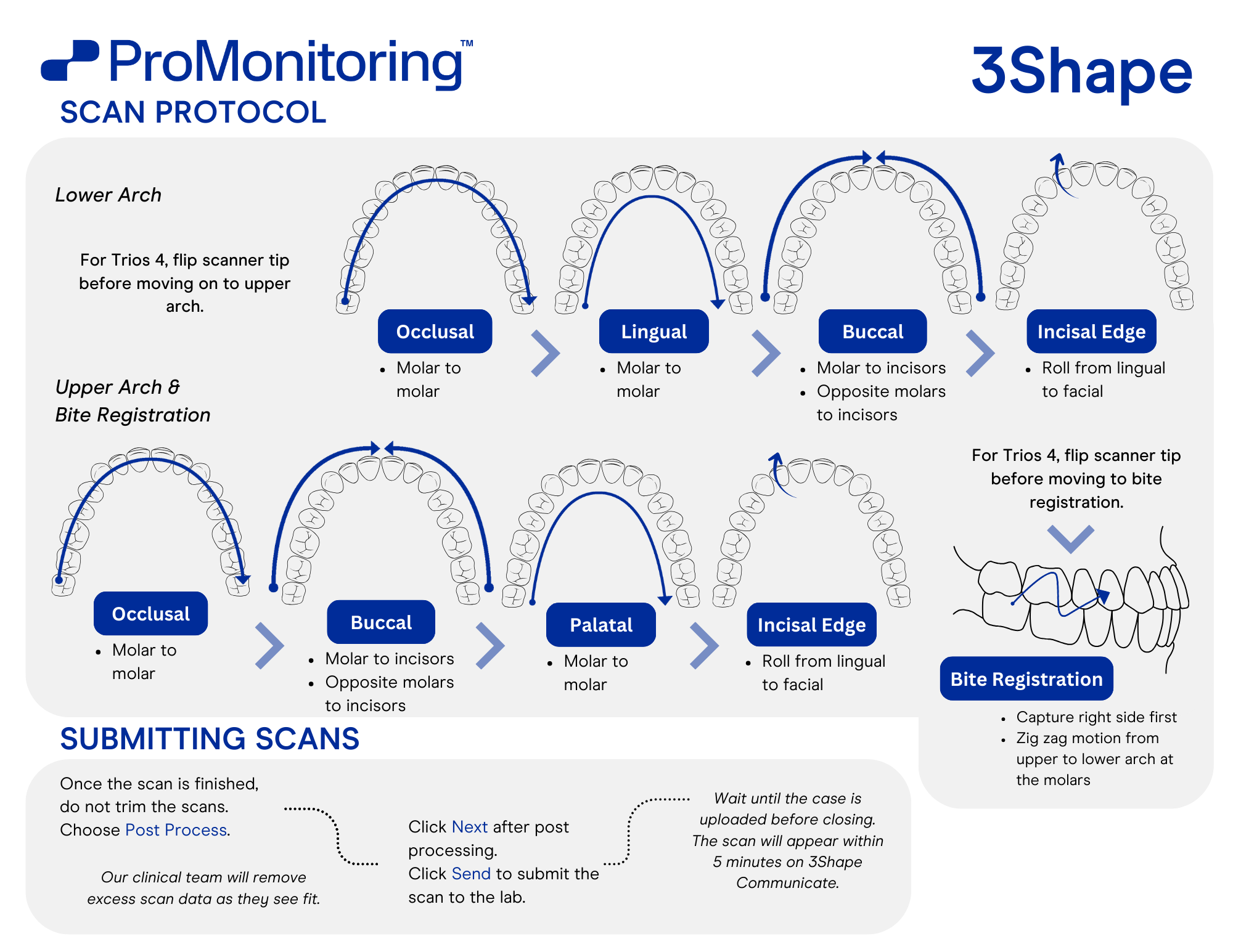

Protocol

Scan Protocol for Lower

↪ Scan full arch

1. Occlusal
2. Lingual
3. Buccal
4. Roll over incisors

Scan Protocol for Upper

↪ Flip Scan Tip

↪ Scan full arch

1. Occlusal
2. Facial
3. Palatal
4. Roll over incisors
5. Bite Registration
   • Flip Scan Tip
   • Capture right side first
   • Left side
   • Zig zag motion from upper to lower arch at the molars
   • Slowly pull scan wand from posterior to anterior teeth
